Opis

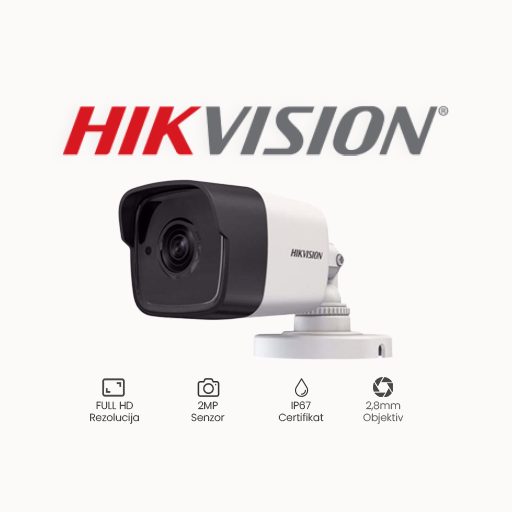

KAMERA 2MP HIKVISION DS-2CE16D0T-ITF (2,8mm)

Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Menu
AGC Low/middle/high
Day/Night Mode Smart/color/BW(Black and White)
Backlight Compensation Yes
DWDR Yes
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4 W
Ingress Protection IP66
Material
Front cover: Mental
Main Body: Plastic
Bracket: Metal
IR Range Up to 20 m
Dimensions 86.7 mm x 81.6 mm x 226 mm(3.4″ x 3.2″ x 8.9″)
Weight Approx. 430 g (0.95 lb)

Datasheet KAMERA 2MP HIKVISION DS-2CE16D0T-ITF (2,8mm)
